Top Selling Fully Automatic Screw Fastening Machine Electric Screwdriver Screw Locking Machine Auto Screwdriver Machine

Name: Top Selling Fully Automatic Screw Fastening Machine Electric Screwdriver Screw Locking Machine Auto Screwdriver Machine
Brand: Robotsung
Price: 6 USD

Buy cheap Top Selling Fully Automatic Screw Fastening Machine Electric Screwdriver Screw Locking Machine Auto Screwdriver Machine product

Price : $6,800-6,900 / set

Delivery Time : 20 days

Power Supply : AC220/110v,50HZ,360w

Warranty of core components : 1 Year

Supply Ability : 1+set+20 days

working table : two

Brand Name : Robotsung

Payment Terms : T/T,Western Union

Power Source : Electricity

Certification : CE

warranty : 1 Year

Move speed : XYZ max 500mm/sec

Packaging Details : wooden case

Electric screwdriver Number : Single

Condition : New

Model Number : YS-L334411

Weight (kg) : 90

MOQ : 1 set

Place of Origin : Guangdong, China

Contact Now

Products Description

Advantages

1,High efficiency, the blowing screw directly sends the screw to the batch nozzle, saving the time of taking the screw back and forth, and the efficiency is higher and more stable.

2,Reduce the labor intensity of workers. Workers only need to pick and place the product and the machine can automatically complete the screwing, which greatly reduces the labor intensity.

3,Simple operation. The display screen can be operated visually, and the staff can quickly grasp the operation and debugging. One worker can manage several machines at the same time.

4,Improve product quality: accurate torque, convenient adjustment, and guarantee the quality of locking.

5. Stable performance, with leakage detection function, it will appear that individual screws have not been blown into place at a time, and can continue to blow or alarm processing to reduce product leakage of screws and increase product qualification rate.

Application

Suitable for all types of screws the total length of the screw should be greater than 1.3 times the diameter of the nut. Screws with a total length of no more than 40mm can be fitted with removable gaskets.

Machine Structure	weight	80kg
	size	680750700cm
	Working area	200400100mm*2
	Power	220/110V,50/60HZ
	Air pressure	0.4-0.6MPA
	Material	made of aluminum profiles
	Drive	Closed loop stepper motor and Hiwin guide rail
Feeder	Quantity	2 PCS
	Feeding type	suction type
	Screw size	M1-M6
Screw driver	Brand	HHB or KILEWS
Function	Torque detection	yes
	Slippery detection	yes
	screw leakage detection	yes

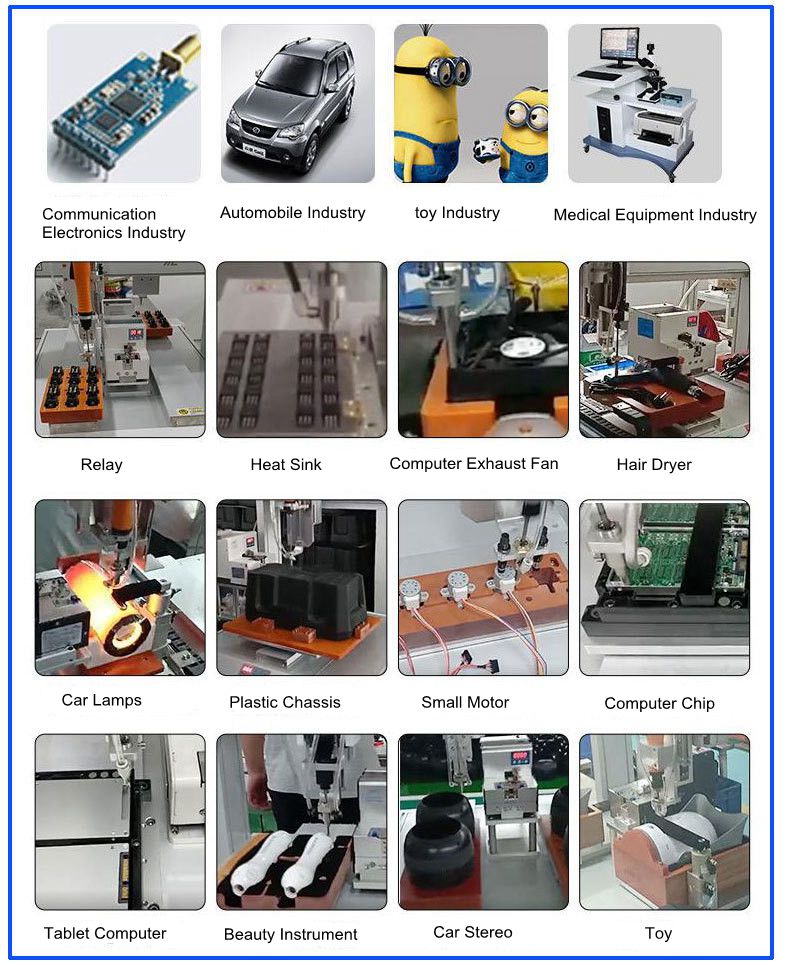

Applications

Top Selling Fully Automatic Screw Fastening Machine Electric Screwdriver Screw Locking Machine Auto Screwdriver Machine

Top Selling Fully Automatic Screw Fastening Machine Electric Screwdriver Screw Locking Machine Auto Screwdriver Machine Images
